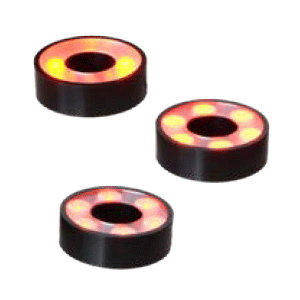

CCS光源环形HLDR3系列HLDR3-100RD-DF-N/M/W
LED发光颜色Red峰值发光波长625 nm typ.外观尺寸Outer diameter 100 mm, Inner diameter 44 mm, Height 31 mm输入电压24 VDC消耗功率15 W max.极性, 信号1: (+), 2: NC, 3: (-)线缆长度300 mm外壳材质Aluminum alloy使用温湿度Temperature: 0 to 40 ℃, Humid
LED发光颜色Red峰值发光波长625 nm typ.外观尺寸Outer diameter 100 mm, Inner diameter 44 mm, Height 31 mm输入电压24 VDC消耗功率15 W max.极性, 信号1: (+), 2: NC, 3: (-)线缆长度300 mm外壳材质Aluminum alloy使用温湿度Temperature: 0 to 40 ℃, Humid
LED发光颜色 | Red |
---|---|
峰值发光波长 | 625 nm typ. |
外观尺寸 | Outer diameter 100 mm, Inner diameter 44 mm, Height 31 mm |
输入电压 | 24 VDC |
消耗功率 | 15 W max. |
极性, 信号 | 1: (+), 2: NC, 3: (-) |
线缆长度 | 300 mm |
外壳材质 | Aluminum alloy |
使用温湿度 | Temperature: 0 to 40 ℃, Humidity: 20 % to 85 %RH (with no condensation) |
保存温湿度 | Temperature: -20 to 60 ℃, Humidity: 20 % to 85 %RH (with no condensation) |
冷却方式 | Natural air-cooling |
输入端口 | SMR-03V-B |
适合规格 | CE, UKCA, RoHS, REACH IEC 62471 HLDR3-100RD-DF-N: Low risk HLDR3-100RD-DF-M: Low risk HLDR3-100RD-DF-W: Exempt |
重量 | HLDR3-100RD-DF-N: 340 g max. HLDR3-100RD-DF-M: 340 g max. HLDR3-100RD-DF-W: 310 g max. |
附属品 | 使用说明书 |
备注 | Please inquire if you would like to use in combination with a strobe control unit (overdrive type) |
