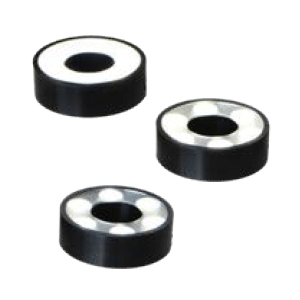

CCS光源环形HLDR3系列HLDR3-100SW-DF-N/M/W
LED发光颜色White峰值发光波长5700 K外观尺寸Outer diameter 100 mm, Inner diameter 44 mm, Height 31 mm输入电压24 VDC消耗功率15 W max.极性, 信号1: (+), 2: NC, 3: (-)线缆长度300 mm外壳材质Aluminum alloy使用温湿度Temperature: 0 to 40 ℃, Humidity
| LED发光颜色 | White |
|---|---|
| 峰值发光波长 | 5700 K |
| 外观尺寸 | Outer diameter 100 mm, Inner diameter 44 mm, Height 31 mm |
| 输入电压 | 24 VDC |
| 消耗功率 | 15 W max. |
| 极性, 信号 | 1: (+), 2: NC, 3: (-) |
| 线缆长度 | 300 mm |
| 外壳材质 | Aluminum alloy |
| 使用温湿度 | Temperature: 0 to 40 ℃, Humidity: 20 % to 85 %RH (with no condensation) |
| 保存温湿度 | Temperature: -20 to 60 ℃, Humidity: 20 % to 85 %RH (with no condensation) |
| 冷却方式 | Natural air-cooling |
| 输入端口 | SMR-03V-B |
| 适合规格 | CE, UKCA, RoHS, REACH IEC 62471 HLDR3-100SW-DF-N: Mod risk HLDR3-100SW-DF-M: Low risk HLDR3-100SW-DF-W: Low risk |
| 重量 | HLDR3-100SW-DF-N: 340 g max. HLDR3-100SW-DF-M: 340 g max. HLDR3-100SW-DF-W: 310 g max. |
| 附属品 | 使用说明书 |
| 备注 | Please inquire if you would like to use in combination with a strobe control unit (overdrive type) |
