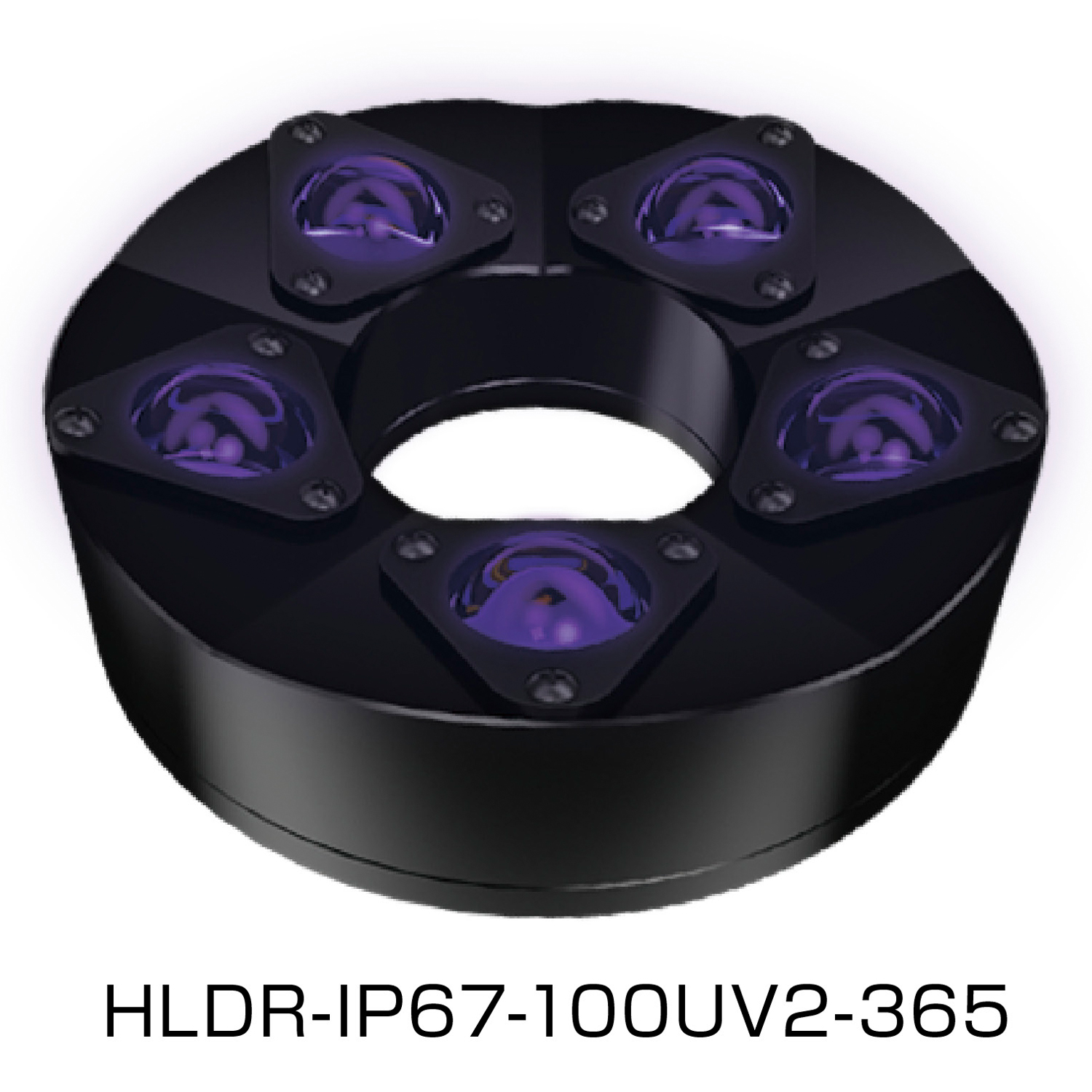

CCS光源环形HLDR-IP系列 HLDR-IP67-100UV2-365
LED发光颜色Ultraviolet峰值发光波长365 nm typ.外观尺寸Outer diameter 100 mm, Inner diameter 43 mm, Height 35.5 mm输入电压24 VDC消耗功率18 W max.极性, 信号1: (24+), 2: NC, 3: GND(-), 4: NC外壳材质Body: aluminum alloy (black anodized
| LED发光颜色 | Ultraviolet |
|---|---|
| 峰值发光波长 | 365 nm typ. |
| 外观尺寸 | Outer diameter 100 mm, Inner diameter 43 mm, Height 35.5 mm |
| 输入电压 | 24 VDC |
| 消耗功率 | 18 W max. |
| 极性, 信号 | 1: (24+), 2: NC, 3: GND(-), 4: NC |
| 外壳材质 | Body: aluminum alloy (black anodized) Screws: SUS Washers: SUS, elastomer (TPE) Connectors: PA resin Lens: silicone |
| 使用温湿度 | Temperature: 0 to 40℃, Humidity: 20 to 95%RH (No condensation) |
| 保存温湿度 | Temperature: -20 to 60 ℃, Humidity: 20 % to 85 %RH (with no condensation) |
| 冷却方式 | Natural air-cooling |
| 输入端口 | XS2M-D423 (Manufactured by OMRON) |
| 适合规格 | CE, UKCA, RoHS, IEC 62471 (High risk), IP67 (JIS C 0920) |
| 重量 | 420 g max. |
| 附属品 | User Manual, Radiation aperture seal, UV DANGER seal |
| 注意事项 | UV radiation is very harmful to the naked eye. To avoid direct exposure to ultraviolet radiation, all workers around the product must use protective equipments. Make known to all personnel concerned the risk of ultraviolet radiation. Take sufficient safety precautions when handling the equipment and devices equipped with this Light Unit. |
| 备注 | When connected to a Dedicated Cable, this product has a protective structure of IP67 to prevent dust and water intrusion so that you can apply this product to wider range of environments than previous products. However, you cannot use this product in water continuously. |
