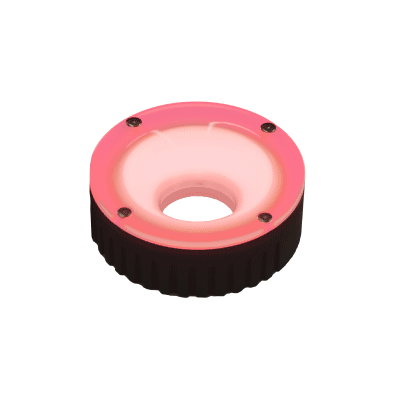

CCS光源环形HPR-PF系列 HPR-PF-50RD
LED发光颜色Red峰值电流6.0 A峰值发光波长625 nm typ.外观尺寸Outer diameter 50 mm, Inner diameter 18 mm, Height 18 mm输入电压48 VDC max.极性, 信号1: (+), 2: NC, 3: (-), 4: NC线缆长度300 mm外壳材质Aluminum alloy, resin使用温湿度Temperature: 0
LED发光颜色Red峰值电流6.0 A峰值发光波长625 nm typ.外观尺寸Outer diameter 50 mm, Inner diameter 18 mm, Height 18 mm输入电压48 VDC max.极性, 信号1: (+), 2: NC, 3: (-), 4: NC线缆长度300 mm外壳材质Aluminum alloy, resin使用温湿度Temperature: 0
LED发光颜色 | Red |
---|---|
峰值电流 | 6.0 A |
峰值发光波长 | 625 nm typ. |
外观尺寸 | Outer diameter 50 mm, Inner diameter 18 mm, Height 18 mm |
输入电压 | 48 VDC max. |
极性, 信号 | 1: (+), 2: NC, 3: (-), 4: NC |
线缆长度 | 300 mm |
外壳材质 | Aluminum alloy, resin |
使用温湿度 | Temperature: 0 to 40 °C, Humidity: 20 % to 85 %RH (with no condensation) |
保存温湿度 | Temperature: -20 to 60 °C, Humidity: 20 % to 85 %RH (with no condensation) |
冷却方式 | Natural air-cooling |
输入端口 | ELP-04NV |
适合规格 | CE, UKCA, RoHS, IEC 62471(Exempt) |
重量 | 50 g |
附属品 | 使用说明书 |
备注 | Use the Light Unit within the lighting conditions (maximum strobe time: 500 μs, maximum duty cycle*: 1%). * The duty cycle is expressed by the following equation: Duty cycle (%) = 100 x Strobe time / Strobe cycle |
